UNI-T UT181A (and Triplett 9065) alternative Windows software v0.09
v0.09 2019/12/11: Both updated (Win 7 fixed from v0.07, and compatible,
Diode check bar corrected)
v0.08 2019/ 2/22: Fixed bug introduced in 0.07 (view records)
v0.07 2018/10/15: Chart uses fast primary value
v0.06 2018/ 9/23: Added missing select dropdown
v0.05 2018/ 8/25: Added WebSocket interface (automatic)
v0.04 2017/12/15: Sampling rate from 100ms to 10 seconds (default 500ms, but
saved)
v0.03 2017/12/12: Auto zoom chart
v0.02 2017/ 6/23:
Auto-exports records when it loads them.
Email for feature
requests.
Download (32-bit) (64-bit)
If you use this free software, please consider donating on the home page to show
that it's useful.
Windows 7 32-bit compatible (No WebSocket)

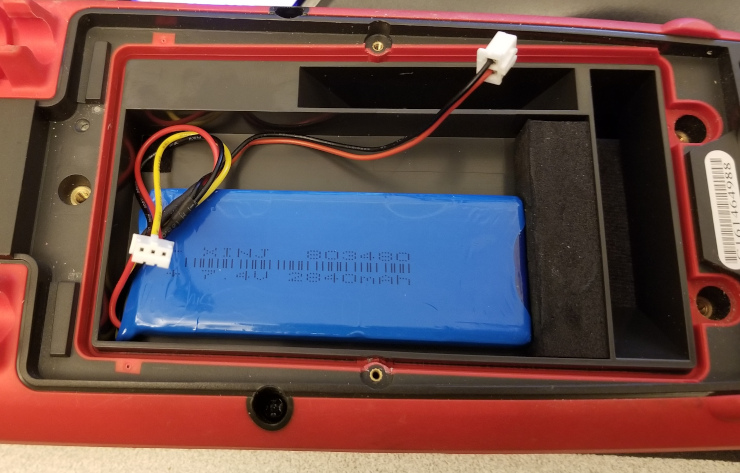

A very good 2840mAh replacement UT181A battery Just solder the old connector the the red/black wires of the ballance connector (See bottom of page)
Enable

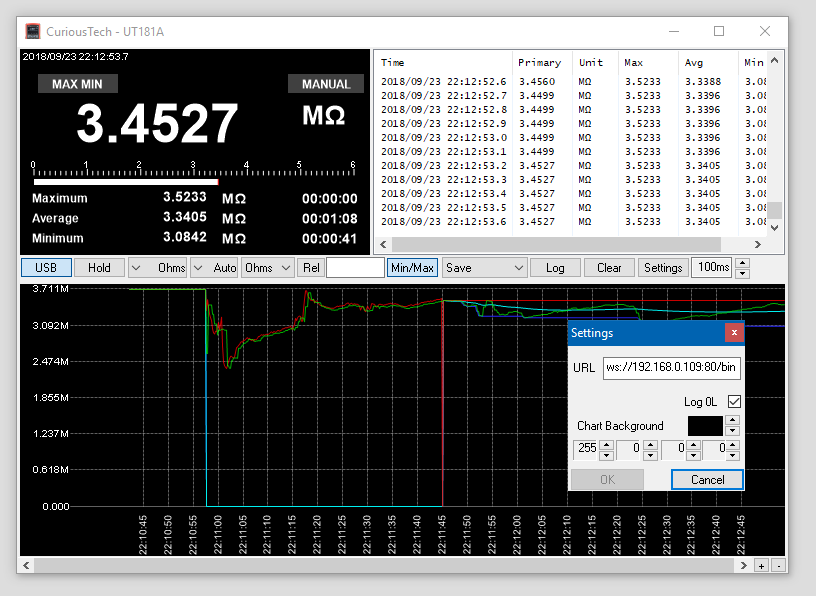

communication on the UT181A and start the app. Connection is
automatic, so it will detect USB plugging/unplugging, and comm
start/stop. The connection is just for manually stopping it.
Hold controls the meter as well though.
Click on graph to select corresponding entry in log, and vise-versa.
Possible bug here, after 32700+ entries (51 minutes) it may get out of sync,
but the tooltip will display correct info.
The log button toggles logging, and clears the log list window.
When started, it will clear the list and begin at that point. When
toggled off, it will save and clear the list. Writes occur when
the list overflows at 32767, when logging is turned off, clear is
pressed, or the app exits. At 10Hz it writes 600 lines per
minute, so it can get long quick.
Local and meter stored recordings are under "View Records" and are
listed seperately. Local are named "log" which is the end of the
filename, so manually changed names can be
seen here. When stored records are loaded, they are saved locally.
The same date and storage name+.log will be seen at the bottom of the
list. The DEL key deletes the selected record or log file.
0L and --.--- (blank display) are represented as cieling values on the
chart, unlike the original app which draws it at the high chart value
which shifts with range changes (auto or manual) showing the wrong
values, for all data of previous ranges!
Prototype WiFi module below. Rechargeable LiPo powered.The OLED
probably won't be in the final rev. The Windows app automatically
connects to it and functions exactly as wired, plus AP/STA mode, and
live web page server with most of the information and controls of the
app, including bar and chart.
See the project on
GitHub

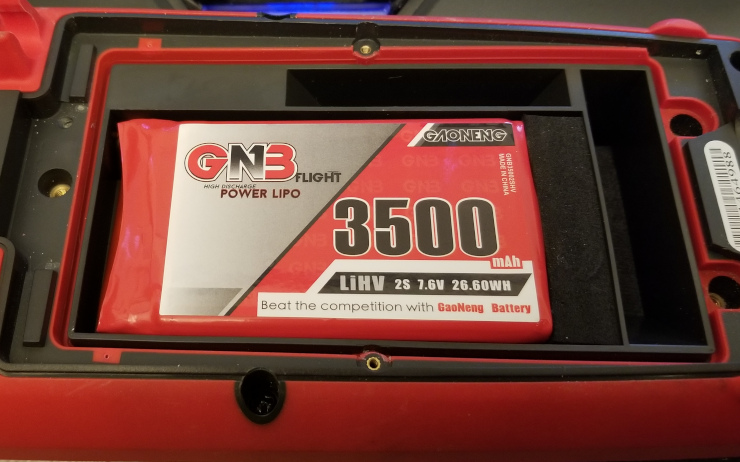

Alternative batteries. Left: 2840 mAh Right: GMB LiHV normally used in Taranis Q X7
